Overview

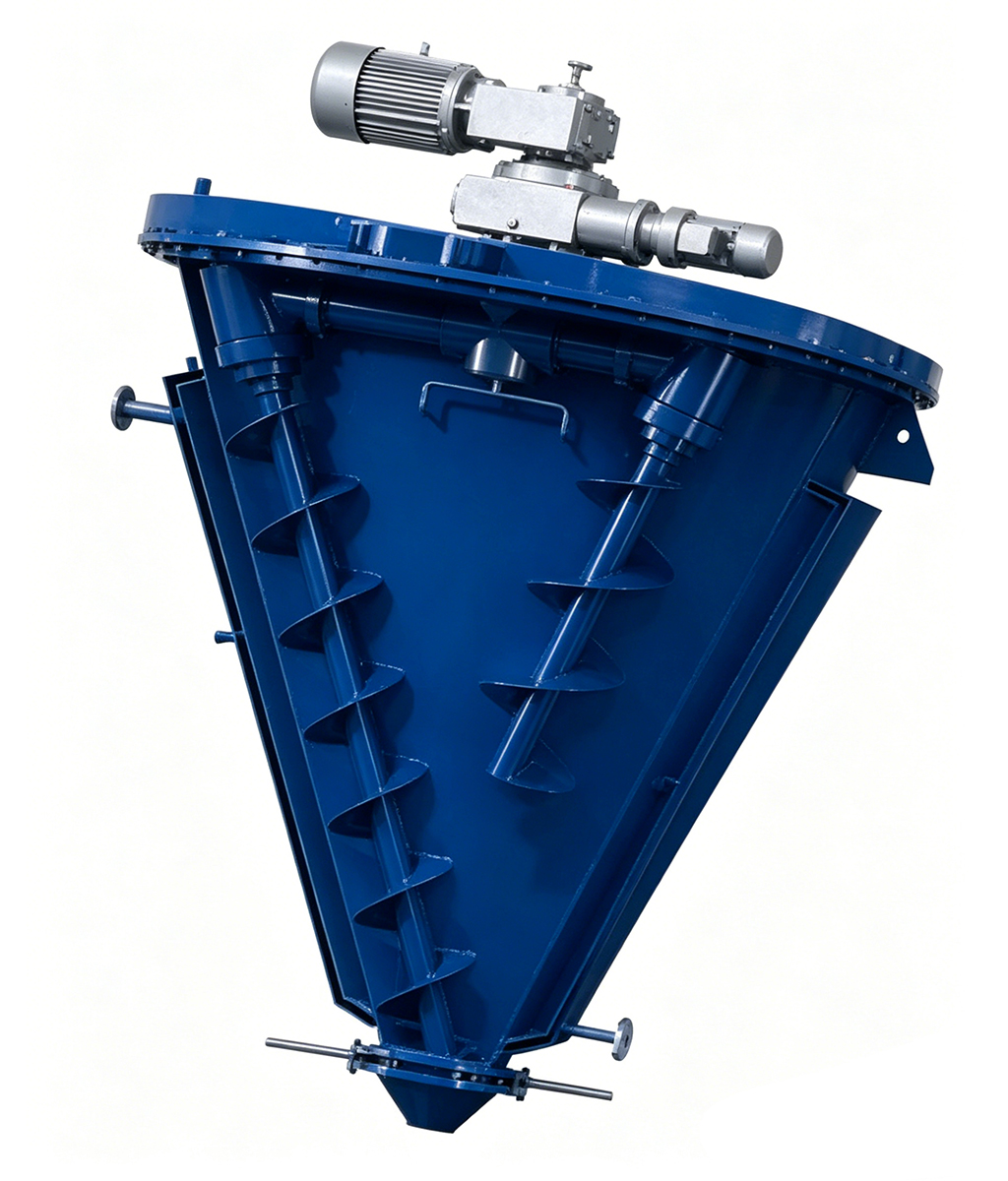

The PPT-VSH series – conical spiral mixer is an advanced mixing machine model developed in collaboration with renowned foreign mixing machine manufacturers and introduced to the domestic market.
Since its launch, the PPT-VSH series – conical spiral mixer has undergone six iterations of upgrades. The latest model of PPT-VSH series – conical spiral mixer has demonstrated excellent application performance in the mixing of powder + powder and powder + liquid (in small quantities) in fields such as chemicals, fertilizers, agricultural (animal) drugs, feed, refractory materials, building materials, dry powder mortar, metallurgy, oil refining, dyes, additives, batteries, electronics plastics, ceramics, glazing, glass, food, and medicine.
The PPT-VSH series – conical spiral mixer has been given the excellent name of “conical” energy-saving mixer by customers due to its outstanding machine design and the characteristics of “low power, high output capacity”.
Device Features
No material residue
Thorough mixing with no dead corners
Low dust emission, zero pollution
Cost-effective power options
| 型号 Model |
允许工作容积 Allowable working volume |
转速（自转/公转） Spindle speed(RPM) |
主电机功率 Motor power(KW) |
独驱公转电机功率 Solo drive male rotation Motor power(KW) |
重量 Equipment weight(KG) |
外形尺寸 Overall dimension(mm) |
KB1 | B1 | A1 | K1 |
| PPT-VSH-0.015 | 6-9L | 130/3 | 0.37 | N/A | 110 | 470(D)*563(H) | N/A | 478 | N/A | N/A |
| PPT-VSH-0.02 | 8-12L | 130/3 | 0.55 | N/A | 120 | 492(D)*583(H) | N/A | 478 | N/A | N/A |
| PPT-VSH-0.03 | 12-18L | 130/3 | 0.55 | N/A | 130 | 524(D)*620(H) | N/A | 590 | N/A | N/A |
| PPT-VSH-0.05 | 20-30L | 130/3 | 0.75 | N/A | 150 | 587(D)*724(H) | N/A | 590 | N/A | N/A |
| PPT-VSH-0.1 | 40-60L | 130/3 | 1.5 | N/A | 210 | 708(D)*865(H) | N/A | 682 | N/A | N/A |
| PPT-VSH-0.15 | 60-90L | 130/3 | 1.5 | N/A | 250 | 782(D)*980(H) | N/A | 682 | N/A | N/A |
| PPT-VSH-0.2 | 80-120L | 130/3 | 2.2 | 0.37 | 500 | 888(D)*1053(H) | N/A | 855 | N/A | 515 |
| PPT-VSH-0.3 | 120-180L | 130/3 | 3 | 0.37 | 550 | 990(D)*1220(H) | N/A | 855 | N/A | 515 |
| PPT-VSH-0.5 | 200-300L | 130/3 | 3 | 0.37 | 600 | 1156(D)*1490(H) | N/A | 855 | N/A | 515 |
| PPT-VSH-0.8 | 320-480L | 57/2 | 4 | 0.75 | 900 | 1492(D)*1710(H) | 708 | 1005 | 525 | 680 |
| PPT-VSH-1 | 400-600L | 57/2 | 4 | 0.75 | 1200 | 1600(D)*1885(H) | 708 | 1005 | 525 | 680 |
| PPT-VSH-1.5 | 600-900L | 57/2 | 5.5 | 0.75 | 1350 | 1780(D)*2178(H) | 708 | 1025 | 525 | 680 |
| PPT-VSH-2 | 0.8-1.2m³ | 57/2 | 5.5 | 0.75 | 1500 | 1948(D)*2454(H) | 708 | 1025 | 525 | 680 |
| PPT-VSH-2.5 | 1-1.5m³ | 57/2 | 7.5 | 1.1 | 1800 | 2062(D)*2473(H) | 708 | 1075 | 525 | 680 |
| PPT-VSH-3 | 1.2-1.8m³ | 57/2 | 7.5 | 1.1 | 2100 | 2175(D)*2660(H) | 708 | 1075 | 525 | 680 |
| PPT-VSH-4 | 1.6-2.4m³ | 41/1.3 | 11 | 1.5 | 2500 | 2435(D)*3071(H) | 730 | 1295 | N/A | 856 |
| PPT-VSH-5 | 2-3m³ | 41/1.3 | 15 | 1.5 | 3000 | 2578(D)*3306(H) | 730 | 1415 | N/A | 856 |
| PPT-VSH-6 | 2.4-3.6m³ | 41/1.3 | 15 | 1.5 | 3500 | 2715(D)*3521(H) | 730 | 1415 | N/A | 856 |
| PPT-VSH-8 | 3.2-4.8m³ | 41/1.1 | 18.5 | 3 | 3800 | 2798(D)*3897(H) | 835 | 1480 | 780 | N/A |
| PPT-VSH-10 | 4-6m³ | 41/1.1 | 18.5 | 3 | 4300 | 3000(D)*4192(H) | 835 | 1480 | 780 | N/A |
| PPT-VSH-12 | 4.8-7.2m³ | 41/1.1 | 22 | 3 | 4500 | 3195(D)*4498(H) | 835 | 1480 | 780 | N/A |
| PPT-VSH-15 | 6-9m³ | 41/0.8 | 30 | 4 | 5000 | 3434(D)*4762(H) | N/A | 1865 | 1065 | N/A |
| PPT-VSH-20 | 8-12m³ | 41/0.8 | 30 | 4 | 5500 | 3760(D)*5288(H) | N/A | 1865 | 1065 | N/A |
| PPT-VSH-25 | 10-15m³ | 41/0.8 | 37 | 5.5 | 6200 | 4032(D)*5756(H) | N/A | N/A | 1065 | N/A |
| PPT-VSH-30 | 12-18m³ | 41/0.8 | 45 | 5.5 | 6700 | 4278(D)*6072(H) | N/A | N/A | 1065 | N/A |
