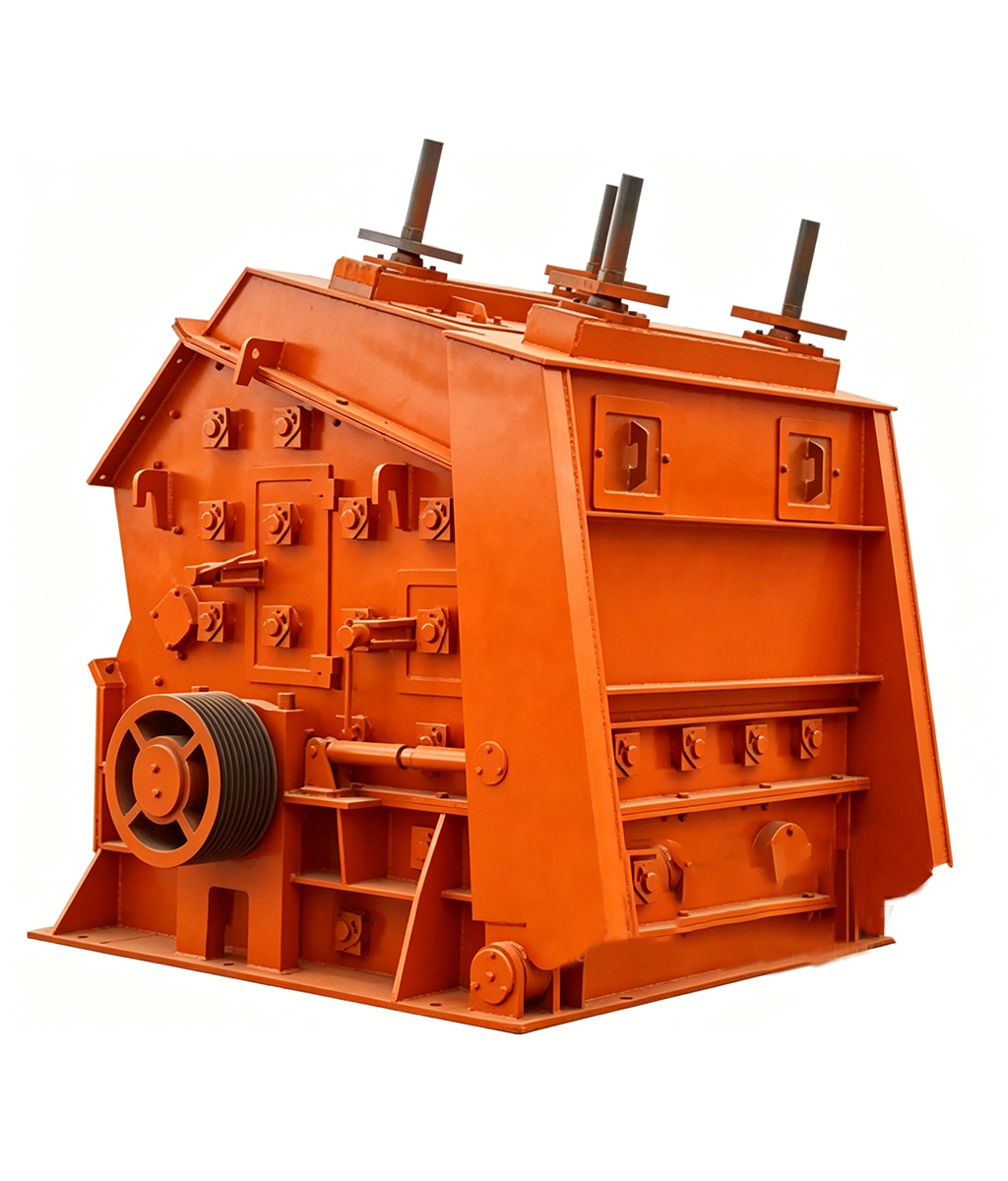

Overview
The impact crusher is suitable for crushing coarse and medium crushing operations of solid materials with a compressive strength of less than 350Mpa, such as: granite, basalt, iron ore, manganese ore, limestone, gold ore, concrete, etc. It has the characteristics of large crushing ratio, good crushing particle shape, compact structure, reliable performance, long blow bar life, and convenient maintenance. Therefore, it is widely used in railways, highways, cement, mining, chemical, construction and other industries.
Working Principle
Impact crusher is a kind of crushing machinery that uses impact energy to crush materials, when the rotor is driven by the motor, the rotor rotates at high speed, when the material enters the blow bar action area, it is broken by the blow bar on the rotor and then thrown to the impact device to be crushed again, and then bounced back to the blow bar action area from the impact liner to be crushed again, this process is repeated, that is, the material is crushed by mutual impact in the first impact area, and then enters the second impact area to be impacted and crushed again, until the material is crushed to the adjusted particle size and discharged from the discharge port.
| 型号 model |
规格 Specification （mm） |
进料口尺寸 Feed port size （mm） |
进料粒度 Feed particle size （mm） |
出料粒度 Discharge Particle Size （mm） |
生产能力 Production capacity （t/h） |
电机功率 Motor Power （Kw） |
| PF-1007 | φ1000×700 | 400×730 | ≤300 | ≤20 | 30-70 | 45 |
| PF-1010 | φ1000×1050 | 400×1080 | ≤350 | ≤25 | 50-90 | 55 |
| PF-1210 | φ1250×1050 | 400×1080 | ≤350 | ≤30 | 70-130 | 110 |
| PF-1214 | φ1250×1400 | 400×1430 | ≤350 | ≤40 | 100-180 | 132 |
| PF-1315 | φ1320×1500 | 860×1520 | ≤500 | ≤50 | 130-250 | 220 |
| PF-1520 | φ1500×2000 | 830×2040 | ≤700 | ≤72 | 300-550 | 440 |
