Overview

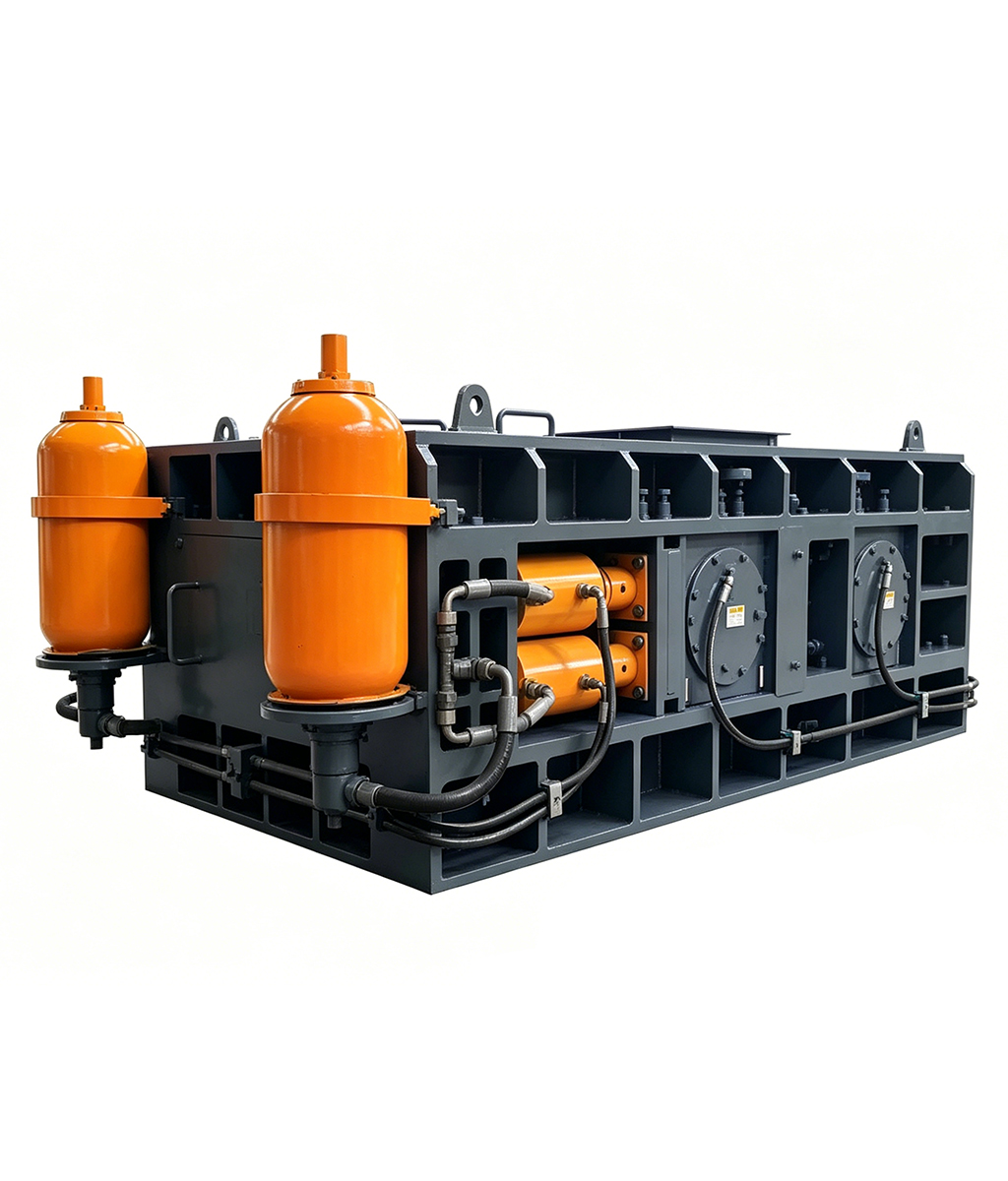

Double-tooth roller crusher (coke) machineIt is suitable for medium crushing and coarse crushing operations of hard, medium hard and soft materials with compressive strength less than 240Mpa and moisture content less than 30%, such as various ores, coal, coke, petroleum coke, quicklime, silica, carbon, glass pipes, asphalt, chemical raw materials, etc. or solid materials equivalent to the above hardness. This equipment has the characteristics of low maintenance cost, reliable performance, less dust and low noise.
The double-tooth roller crushing (coking) machine is equipped with two tooth rollers, and the tooth roller surface is divided into large (small) wolf teeth, special teeth for coking, ring teeth, straight teeth, large plate teeth, etc., which is suitable for feed particle size less than 1200mm, finished product particle size requirements 10-300mm, requiring less powder, more particles medium crushing or coarse crushing occasions.
For example, the mining industry crushes various ores; crushing limestone and coke in the steel industry; crushing thermal coal in the thermal power industry; crushing coke in the coking industry; crushing raw coal in the coal mining industry; crushing petroleum coke in the chemical industry; Breaking silica in the electronics industry; Carbon industry breaks carbon blocks; Crushing waste glass pipes in the solar industry; The construction industry crushes quicklime, construction waste, clay, asphalt, etc., or similar crushing occasions as mentioned above.
According to user requirements, it is divided into two ways: V-belt and coupling drive (hard link). The power of this equipment can also be modified into a diesel engine or gasoline engine according to the user’s requirements.
Working Principle
The double-tooth roller crusher (coke) machine uses two wear-resistant tooth rollers, the high extrusion force generated by the relative rotation to crush the material, after the material enters the gap between the two tooth rollers (V-shaped crushing cavity), it is affected by the extrusion force and shear force of the relative rotation of the two tooth rollers, under the extrusion, shearing and grinding, the material is crushed to the required particle size and then discharged from the discharge port..
| 序号 Serial number |
规格型号 Specification model |
进料粒度 Feed particle size （mm） |
出料粒度 可调 Discharge particle size adjustable （mm） |
生产能力 Production capacity （t/h） |
电机功率 Motor power Kw |
保护方式 Protection mode |
传动方式 Transmission mode |
| 1 | 2PG-10CT | ＜120 | 10-50 | 2–20 | 6–8 | 弹簧 Spring |
三角带 或 联轴器 V-belt or coupling |
| 2 | 2PG-30CT | ＜120 | 10-50 | 6-40 | 8–15 | ||
| 3 | 2PG-50CT | ＜200 | 10-60 | 10-80 | 22-37 | ||
| 4 | 2PG-60CT | ＜300 | 10-80 | 20-150 | 30-45 | ||
| 5 | 2PG-80CT(Y) | ＜400 | 10-100 | 30-200 | 60-75 | 弹簧 或 液压 Spring and hydraulic |
|
| 6 | 2PG-100CT(Y) | ＜300 | 10-90 | 40-280 | 75-90 | ||
| 7 | 2PG-120CT(Y) | ＜400 | 10-120 | 50-350 | 90-110 | ||
| 8 | 2PG-150CT(Y) | ＜600 | 10-150 | 65-450 | 110-150 | ||
| 9 | 2PG-220CT(Y) | ＜800 | 10-180 | 80-600 | 150-180 | ||
| 10 | 2PG-350CT(Y) | ＜900 | 10-200 | 90-800 | 220-280 | ||
| 11 | 2PG-500CT(Y) | ＜1200 | 20-300 | 200-2500 | 250-320 | ||
| 12 | 2PG-800CT(Y) | ＜1200 | 20-300 | 300-3500 | 320-400 | ||
| 13 | 2PG-1200CT(Y) | ＜1200 | 20-300 | 400-5000 | 600-800 |
