Overview

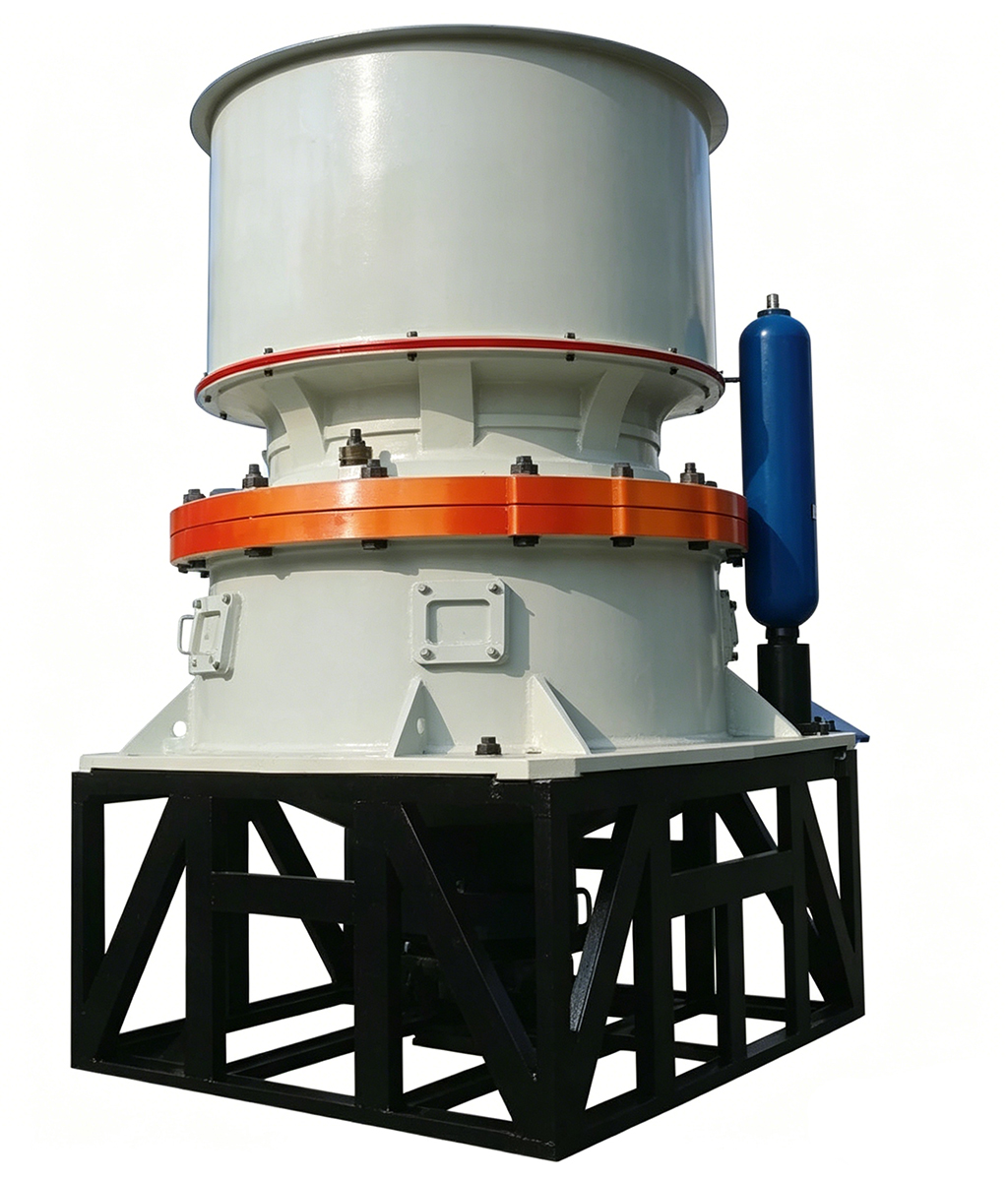

ZYS series cone crusher is digested and absorbed by 80 countries in various countriesIt is developed on the basis of various types of cone crushers at the international advanced level. It is clearly different in design from the structure of traditional cone crushers and concentrates the main advantages of various types of cone crushers known so far. It is suitable for fine crushing and ultra-fine crushing of hard rocks, ores, slag, refractory materials, etc. Cone crusher can be widely used in metallurgical industry, construction industry, road construction industry, chemical industry and phosphate industry, suitable for crushing hard and medium-hard ores and rocks, such as: iron ore, copper ore, limestone, quartz, granite, basalt, diabase, etc. The type of crushing chamber is determined by the use of the ore: the standard type is suitable for medium crushing, the medium type is suitable for fine crushing, and the short head type is suitable for ultra-fine crushing.

Working Principle

When the machine is working, the motor drives the large bevel gear at the bottom of the eccentric sleeve through the fluid coupler and small bevel gear, so that the eccentric sleeve rotates, causing the cone to rotate and swing and crush the material. The main shaft of the crusher is immovable, but only supports the spherical tiles to withstand the crushing force. Because the crusher spindle does not move and the eccentric sleeve transmits the crushing force, the structure can withstand a large crushing force, which is very suitable for fine crushing and ultra-fine crushing, because the crushing force of ultra-fine crushing is very large. It is expected that the particle size of its products (for ultra-fine fragmented liners) can reach 50^80% in 15m2 when the circuit is open (depending on the nature of the material). The crusher is suitable for the third or fourth stage crushing of metal mine concentrators; It is suitable for building materials or non-metallic mines and civil engineering. Especially in areas where the supply of natural sand required for civil engineering is insufficient.

Features 1. Increase the eccentricity and improve the processing capacity;
2. Speed up, increase power, and improve crushing fineness;
3. Raise the center of the moving cone and optimize the cavity design;
4. The liner is thickened to extend the life;
5. The hydraulic motor replaces the hydraulic push rod device, and the discharge port is accurately and continuously adjusted, and the cone assembly is dismantled in 10 minutes.
6. High output and powder ore content;
7. The key components are made of high-strength materials, which appropriately increase the weight and have better reliability.
Working characteristics
1. The moving cone rotates continuously, and the crushing process and discharging process of the material are carried out alternately and continuously along the working surface, with high productivity.
2. The material is sandwiched between two cones, subjected to extrusion, bending and shearing, which is easier to crush and has low power consumption.
3. The product material is more uniform, cube-shaped, and the wear of the working surface of the moving cone is also more uniform.
4. Introduction to the structure, the structure of the cone crusher is mainly composed of organic frame, horizontal shaft, moving cone, balance wheel, eccentric sleeve, upper crushing wall (fixed cone), lower crushing wall (moving cone), hydraulic coupler, lubrication system, hydraulic system, control system and other parts.
5. The moving cone and the fixed cone are both upright, and when the moving cone swings, there is a parallel belt with an equal gap between the moving cone and the fixed cone near the crushing chamber discharge port, so that the finished product is uniform. The size of the feeding port is not large, and it can handle all the materials that have been crushed for the first time.
6. This series of cone crusher adopts two sealing methods: dry oil or water, so that dust impurities cannot enter the human body, so as to ensure the cleanliness of lubrication oil, extend the service life of plain bearings and thrust ball bearings, and make the machine run reliably.
