Overview

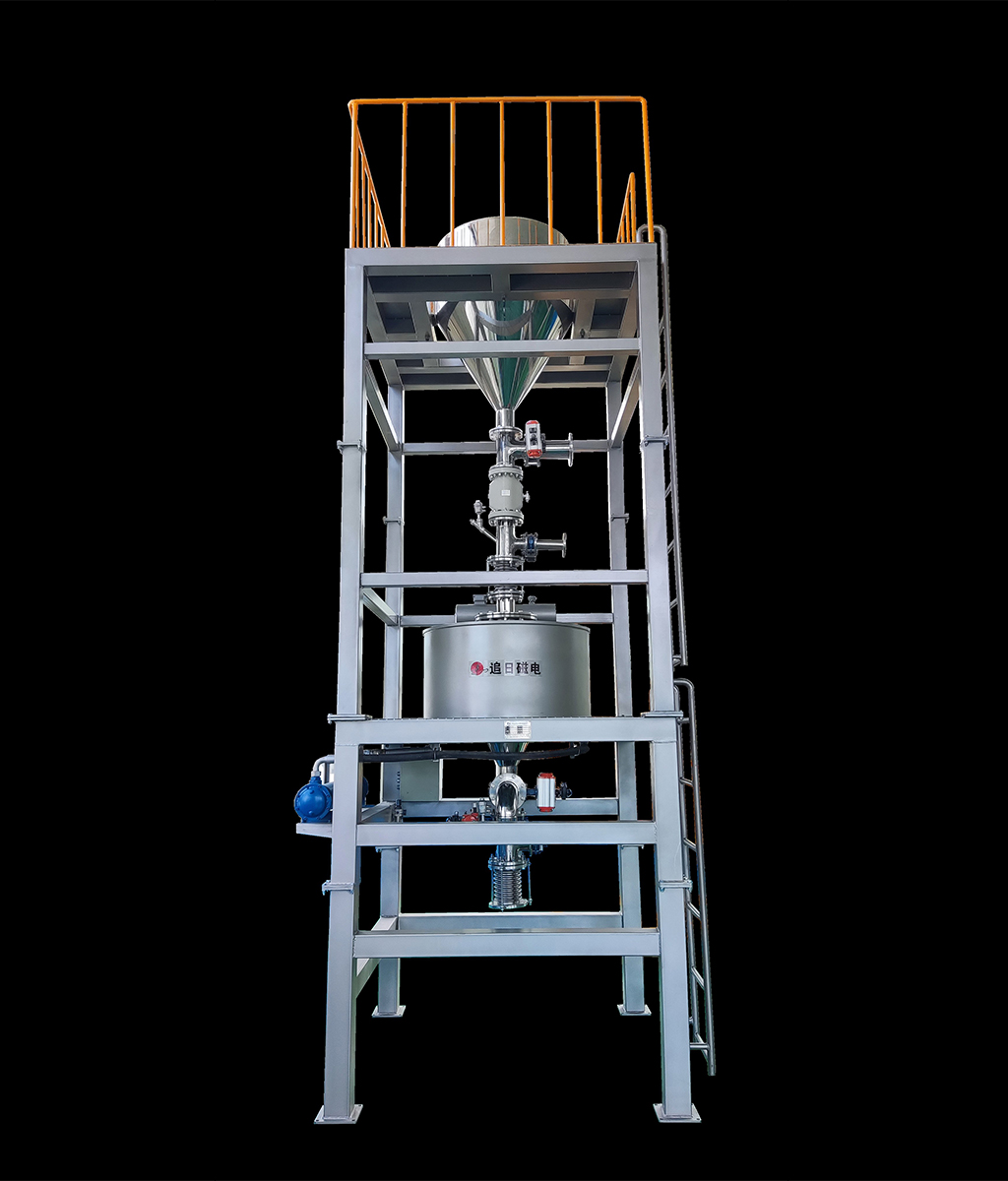

The ZR0709SS-2 Series Electromagnetic Wet Mortar Magnetic Separator is a proprietary product independently developed by our company, specifically designed for iron removal from relatively coarse-grained mortar. Featuring a unique design, this machine not only retains the excellent magnetic separation performance of chamber-type electromagnetic slurry magnetic separators, but also ingeniously solves the problems of sedimentation and clogging that frequently occur with coarse-grained mortar during magnetic separation by adopting co-current flow and other optimized measures. It effectively addresses the long-standing industrial challenge of unsatisfactory magnetic separation results for coarse-grained mortar, and has been well received by users.
Working Principle
1. Unique design that leverages the high-efficiency magnetic separation performance of chamber-type electromagnetic slurry magnetic separators. The magnetic field intensity of the medium grid inside the working chamber reaches 18,000–20,000 gauss, delivering remarkable iron removal effects.
2. Adopts co-current flow and other optimized measures to ingeniously solve the problems of sedimentation and clogging commonly encountered with coarse-grained mortar during magnetic separation, ensuring stable and smooth operation.
3. Equipped with high-pressure water flushing for thorough and rapid cleaning; a single cleaning cycle can be completed in just over ten seconds.
4. Utilizes forced oil circulation and water cooling for excellent cooling performance.
5. Real-time coil temperature monitoring effectively prevents coil burnout caused by excessive temperature rise.
6. Fully automatic operation requires no manual intervention after startup; the system automatically completes the iron removal process according to preset programs..
| 型号 Model No. |
磁感应强度 Magnetic induction intensity(Gs) |
输入电压 Input voltage |
励磁功率 Excitation power(Kw) |
生产能力 Production capacity(t/h) |
适应物料 Adapt material |
主机重量 Mainframe weight(kg) |
| ZR0709SS-2-16 | 16000 | AC 380V 50Hz 三相四线/Three-phase Four-wire |
≤3.9 | 2~3 | a.物料粒度20目以细； b.非磁性； c.浓度≤30%； d.含铁量≤1% a. Material particle size: finer than 20 mesh; b. Non-magnetic; c. Concentration ≤ 30%; d. Iron content ≤ 1%. |
950 |
| ZR0709SS-2-16T1 | 17000 | ≤5.3 | 1050 | |||
| ZR0709SS-2-16T2 | 18000 | ≤6.8 | 1160 | |||
| ZR0709SS-2-20 | 16000 | ≤6.2 | 3~5 | 1220 | ||
| ZR0709SS-2-20T1 | 17000 | ≤6.8 | 1360 | |||
| ZR0709SS-2-20T2 | 18000 | ≤7.8 | 1480 | |||
| ZR0709SS-2-25 | 16000 | ≤7.0 | 5~8 | 1550 | ||
| ZR0709SS-2-25T1 | 17000 | ≤8.1 | 1750 | |||
| ZR0709SS-2-25T2 | 18000 | ≤9.5 | 1960 | |||
| ZR0709SS-2-30 | 16000 | ≤8.5 | 7~10 | 1960 | ||
| ZR0709SS-2-30T1 | 17000 | ≤10.0 | 2150 | |||
| ZR0709SS-2-30T2 | 18000 | ≤12.0 | 2380 | |||
| ZR0709SS-2-35 | 16000 | ≤10.5 | 10~15 | 2400 | ||
| ZR0709SS-2-35T1 | 17000 | ≤12.5 | 2630 | |||
| ZR0709SS-2-35T2 | 18000 | ≤15.6 | 2880 | |||
| ZR0709SS-2-40 | 16000 | ≤12.5 | 15~20 | 2930 | ||
| ZR0709SS-2-40T1 | 17000 | ≤15.6 | 3180 | |||
| ZR0709SS-2-40T2 | 18000 | ≤19.6 | 3980 |
